Sliding Patio Door Hard to Open? Rollers and Tracks

A sliding patio door, or doorwall as most people around here call it, should glide open with one hand. When it starts to drag, grind, stick or jump the track, it gets used less and less, and forcing it can damage the door. Most of the time the cause is at the bottom of the door: a dirty track, rollers that need adjusting, or rollers that are worn out.

How the door rides

The sliding panel sits on rollers, usually one at each bottom corner, that ride on a raised rail in the track. Each roller usually has an adjustment screw that raises or lowers that corner of the door. A handle and lock on the side of the panel latch it to the frame. When the rollers are clean and set right, the door sits level and slides easily.

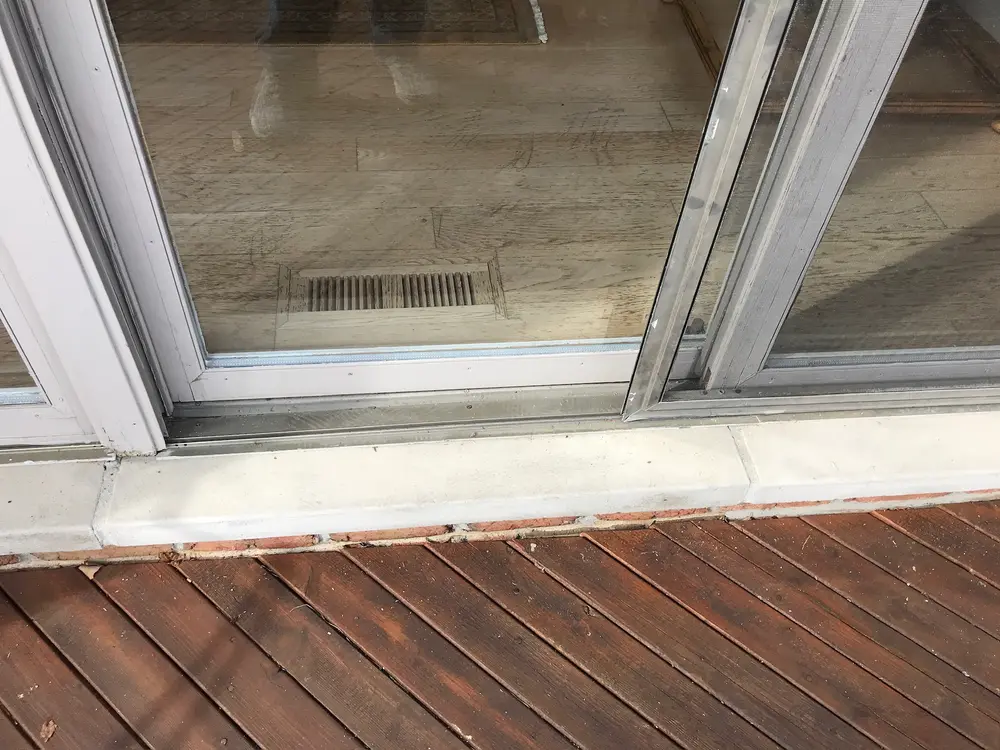

Start with the track

Dirt, sand, pet hair and small stones collect in the track and get ground into the rollers. Before you change anything:

1. Vacuum the track well, including the corners.
2. Wipe the rail the rollers ride on with a damp cloth and let it dry.
3. Look for dents or bent spots in the rail. A damaged rail can make even new rollers bump and drag.
4. If you use a lubricant, use a dry silicone spray made for tracks. Oily lubricants hold dirt.

Slide the door a few times. If it is better, you may be done.

Check the roller adjustment

If the door still drags, look at the gap between the bottom of the door and the track, and at the line of the door against the frame. A door that rubs at the bottom, or sits lower on one side, may only need its rollers adjusted. The adjustment screws are usually behind small covers or holes at the bottom ends of the sliding panel. Turn them a little at a time, check how the door slides after each turn, and keep the door level so the lock still lines up.

Signs the rollers are worn out

• The adjustment screws turn but the door does not rise
• You hear grinding or feel a bump in the same spot every time
• The door drags even with a clean track
• The wheels are cracked, flat-spotted or will not spin when you can see them

Rollers wear out with use, and when one goes, the other is usually not far behind.

Replacing the rollers

Replacing the rollers means lifting the sliding panel out of the frame. Doorwall panels are heavy and awkward, and the glass can break if the panel is dropped or twisted. Plan on at least two people, or have it done for you.

Rollers have to match the door. Take the old roller out and compare its size, its housing and the way it mounts. Our shop carries several, including a 1-1/2 inch steel ball bearing roller and a 1-1/8 inch tandem roller. Replace both rollers at the same time. A new roller paired with an old one has to work harder and wears out sooner.

Handles and locks

A door that has been forced for a while often needs a new handle or lock too. Handle sets are matched by the distance between the mounting screws and the style of the latch. Rollers and handle sets are together in the door wall and handles section of our shop.

If the lock no longer catches, check the roller height first. A door that has dropped can miss the keeper on the frame.

Keep it sliding

Vacuum the track a few times a year, and more often if the door opens onto a deck or yard where sand and grit get tracked in. Keep the weep holes or drain slots at the bottom of the track clear so water can get out. Do not lift or slam the door to force it past a sticky spot. If it drags, find out why before the rollers or the track wear further.

When to call a pro

Call for help if the track rail is damaged, the panel will not come out of the frame, the glass is cracked or foggy, or you cannot find a roller that matches. Doorwall glass and repairs are part of our glass and window repair work.

Get it sliding again

Order the parts, or let us take care of it. Call (248) 250-8000 with a photo of the old roller if you need help matching it, or request a free quote. We work on doorwalls for homeowners across Metro Detroit (Macomb, Oakland and Wayne Counties).
